| Place of Origin: | Japan |
| Brand Name: | Fanuc |
| Certification: | COO & COC |
| Model Number: | A20B-2101-0490/01A |
Fanuc A20B-2101-0490/01A PC Circuit Board Module
1. Overview of the Fanuc A20B-2101-0490/01A
The Fanuc A20B-2101-0490/01A is a servo axis control board specifically designed for FANUC CNC systems. Constructed using a multi-layer, high-density PCB and industrial-grade components, it can operate 24/7 in an ambient temperature range of 0–55°C. The onboard high-speed DSP and the latest servo algorithms enable position closed-loop control with 0.001° resolution and a 250 μs current loop update rate. Support for the Serial Servo Bus (FSSB) provides nanometer-level trajectory accuracy for multi-axis linkage.
2. Core Features:
In terms of interfaces, the board provides four servo motor encoder ports, emergency stop and safety door interlock terminals, and a built-in 24 VDC/2 A brake power output for directly driving the motor holding brake. Front-panel LEDs display axis status and fault codes in real time. Combined with Fanuc's dedicated maintenance software, fault location and firmware upgrades can be completed within 5 minutes, significantly reducing downtime.
The A20B-2101-0490/01A is compatible with the αi/βi series servo amplifiers, which are widely used in high-speed machining centers, mill-turn machines, and robotic production lines. Its plug-and-play compatibility allows upgrades to older machines without rewiring, making it the preferred servo control core for improving equipment accuracy and reliability.
3. Related products
| A20B-2101-0390 | A20B-2101-0391 |
| A20B-2101-0050 | A20B-2101-0051 |
| A20B-2101-0070 | A20B-2101-0071 |
| A20B-2101-0090 | A20B-2101-0091 |
| A20B-2101-0870 | A20B-2100-0800 |
| A20B-2100-0804 | A20B-2100-0760 |
| A20B-3300-0310 | A20B-3300-0311 |
| A20B-3300-0312 | A20B-3300-0313 |
| A20B-3300-0319 | A20B-3300-0773 |
| A20B-2900-0370 | A20B-1001-0120 |

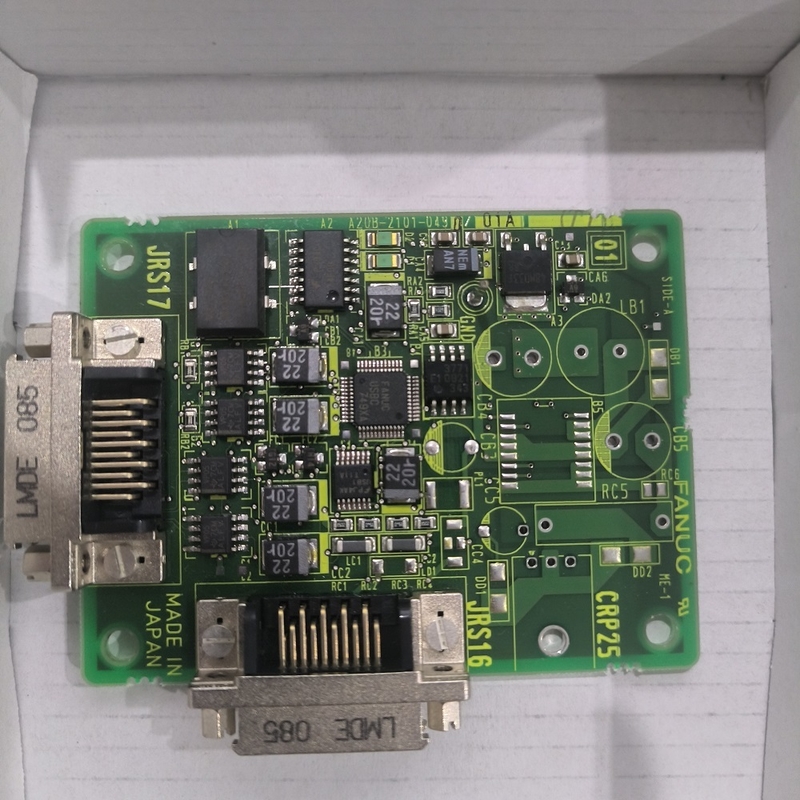

4.Product details pictures
